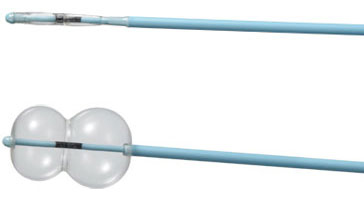

The NeuroBalloon™ Catheter is designed for dilatation of pre-punctured cerebral membrane fenestrations such as Endoscopic Third Ventriculostomies (ETVs). The unique double balloon assures quick, simple, and accurate positioning. The dilatation of the membrane can be observed through the transparent silicone material of the NeuroBalloon Catheter, allowing maximum control. This accurate positioning is especially important during ETVs to avoid damage to critical structures such as the basilar artery.
NeuroBalloon Kit includes:
- Polyurethane catheter with integral female luer lock connector and attached transparent silicone double balloon
- 1ml (1cc) syringe
Inflation information
When deflated, diameter allows compatibility with 4FR working channels (1.35mm)
Diameter of the waist of a pre-inflation with 1.0ml (1.0cc):
- When inflated with 0.6ml (0.6cc) = 3.5mm minimum
- When inflated with 1.0ml (1.0cc) = 6.0mm maximum
Indications
The NeuroBalloon Catheter is intended for dilatation of cerebral membrane fenestrations under direct or endoscopic visualization during intracranial procedures.
Warning
Not for intravascular use. Do not use in rigid neuro-tissues, such as dilatation of aqueducts stenosis or thick membranes of arachnoid cysts, since the balloon is not designed to withstand high pressure. If the dilatation of the target site is not successful with 1 ml of air, the tissue may be too rigid for this instrument. Over-inflation should not be attempted as it may damage the balloon; another technique should be used.
